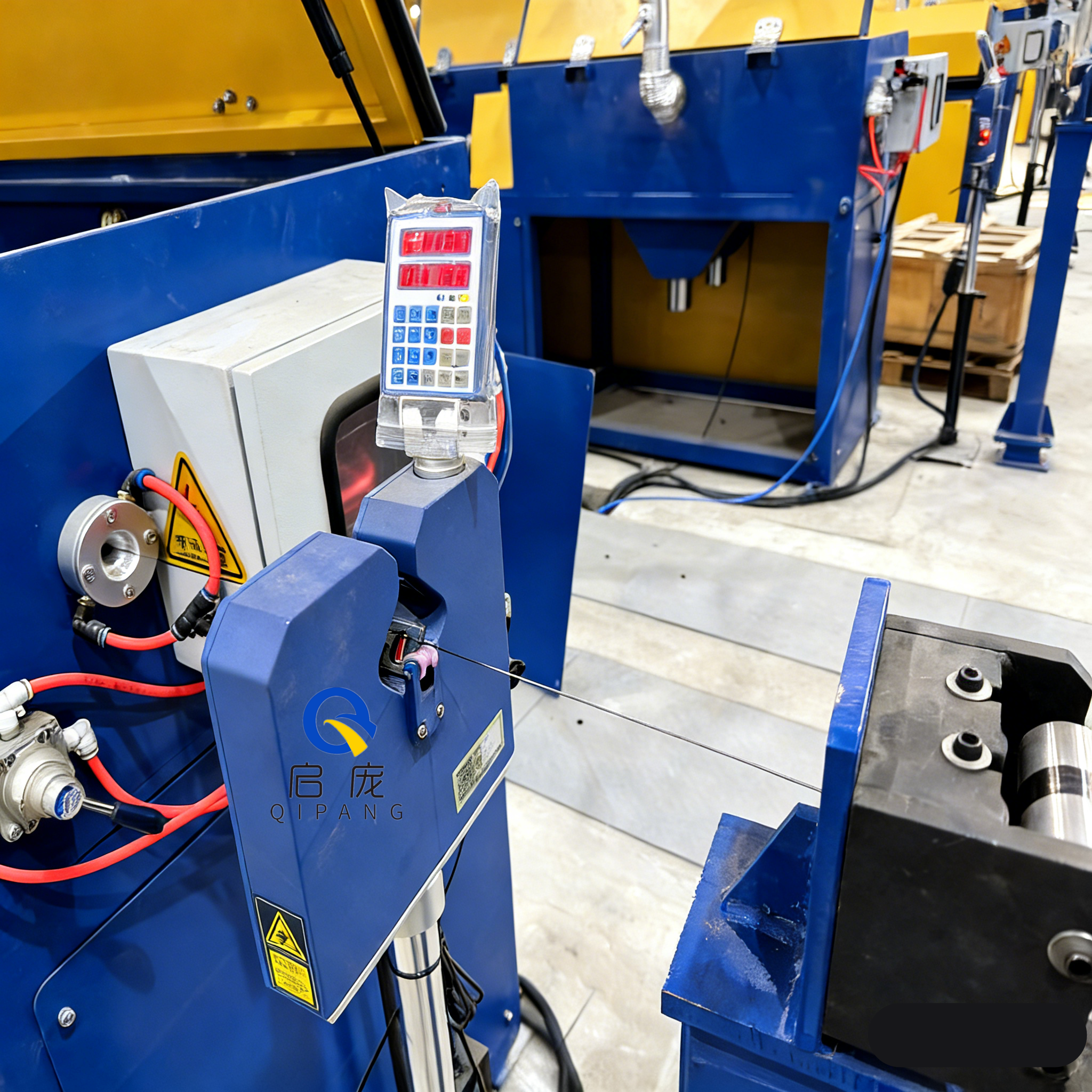

The QP-10B dual axis Laser Diameter gauge is an exact measuring device that utilizes the laser scanning principle for non-contact online measurement. Its bi-directional feature allows for simultaneous measurement of the outside diameter in the X and Y axes, making it perfect for measuring round objects such as metal wires, glass tubes, and hoses. This instrument can measure the outside diameter, roundness, and runout of wires and cables with an accuracy of ±0.002mm. It also features an average-value display, which enables you to monitor your products’ quality and maintain consistency easily.
Applications:
The QP-10B Laser Bidirectional Diameter Measuring Instrument is primarily used for measuring the outside diameter, roundness, and runout of wires and cables made of metal, glass, or rubber. This instrument is widely used in electrical, automotive, and communication industries, ensuring high-precision measurement and quality control.
Remote Display Product Description
Installation opening size: 91.5*43, features: has not only remote display function but also has digital; interface: RS485/232; diameter output: 0-10V; PID control output: ±0.1~2.1V; out-of-tolerance alarm output Voltage (12V), the maximum distance can reach 300 meters.
FAQs:
1. Is this instrument suitable for measuring the diameter of flexible hoses?
Yes, the QP-10B Laser Bidirectional Diameter Measuring Instrument can measure the diameter of flexible hoses made from rubber or other materials.
2. Can I connect this instrument to my current production line?
The instrument can be connected to a PLC, industrial control machine, or a particular controller to display its data on any large screen.
3. How does this instrument measure roundness and runout?
The instrument utilizes a laser scanning method to measure the roundness and runout of wires and cables.
4. Can I use this instrument to measure the inside diameter of a tube?
No, the QP-10B Laser Bidirectional Diameter Measuring Instrument is designed to measure tubes’ outside diameter, not the inside diameter.
5. Can this instrument be used in dusty or humid environments?
The instrument’s operating temperature range is -10～40℃, and its ambient humidity range is <85%RH. Therefore, using the tool in dusty or humid environments is not recommended as it may impact performance.

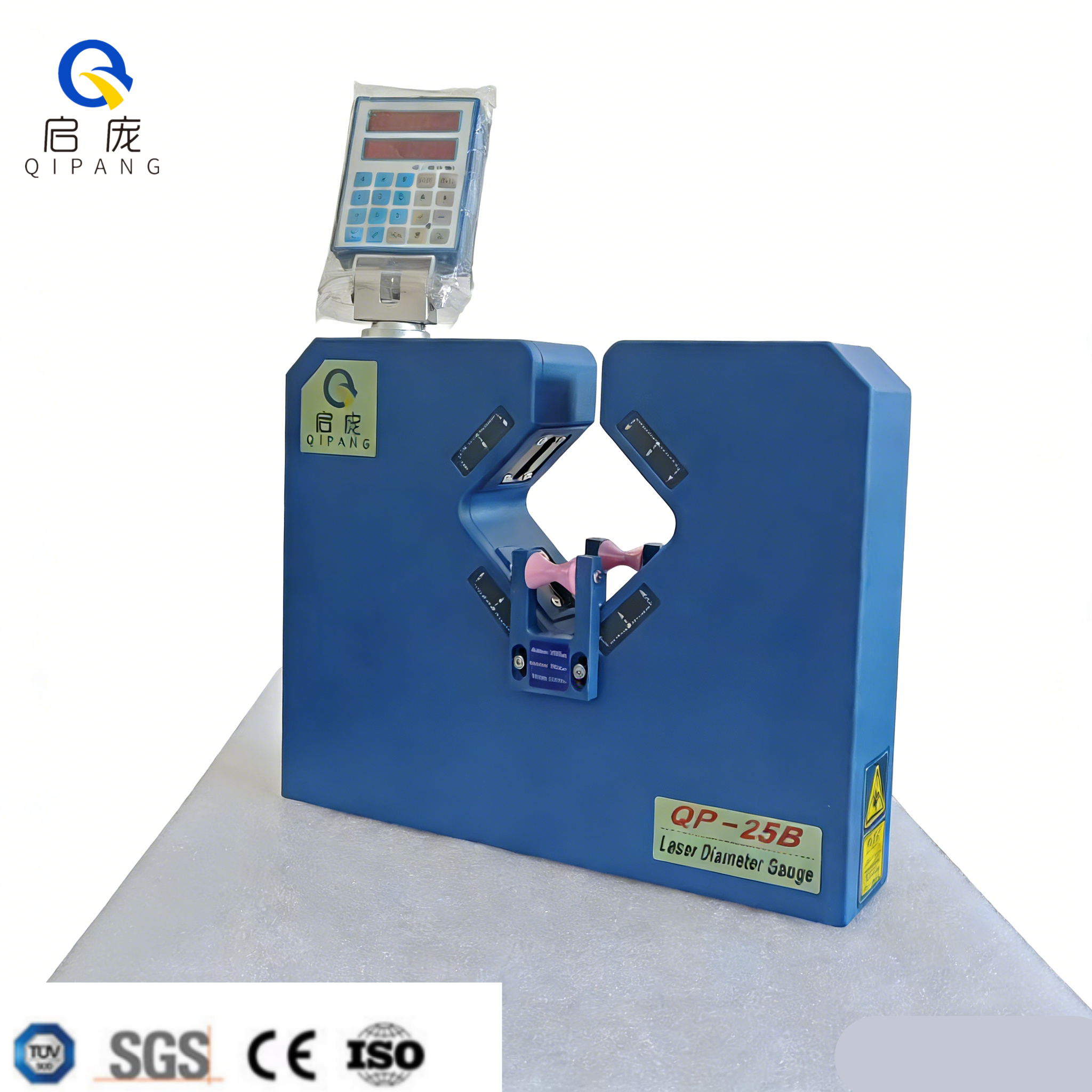

For more models and parameters:
| QP-25A | QP-40A | QP-60/70/100/200A | |
|---|---|---|---|
| Measuring range: | 0.1-25mm | 0.1-40mm | 1-60/70/100/200mm |
| Measurement accuracy: | ±0.002mm | ±0.002mm | ±0.002mm/±0.01mm |
| Resolution: | 0.001mm | 0.001mm | 0.001mm |
| Communication interface | RS485 | RS485 | RS485 |
| Weight: | 3.4KG | 4.4KG | 7.1/8/10/12KG |
