Stop guessing and start knowing the exact length of your materials. Our Cable Length Measurement is the essential tool for any business that deals with coiled or rolled products. Designed for precision and ease of use, it ensures you have accurate data for inventory, sales, and quality control, eliminating waste and improving efficiency.
| model | QP-25L Cable Length Measurement |
|---|---|
| Applicable wire diameter | 1-25mm |
| Applicable linear speed | 0-200M/Min |

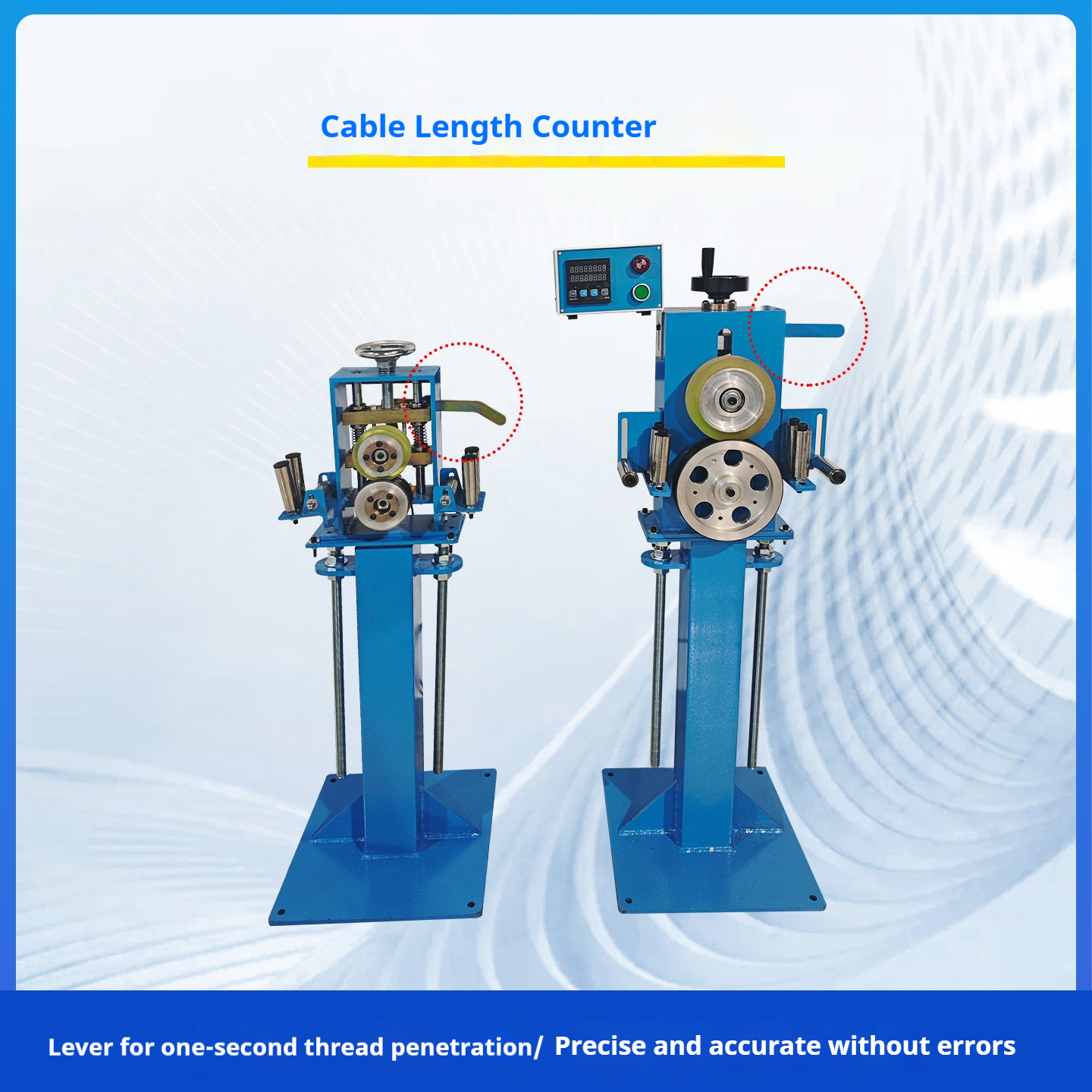

| center height | 900-1100mm(Center height adjustable) |
| Material of meter wheel | Rubber Wheel Ceramic-Coated Wheel Drive |
| Diameter of the meter wheel | φ79.48mm±0.01 |
| Meter accuracy | Rewinding 2‰ twisled wire 2‰ extrusion 1.5‰ |
| Countable length | 0-99999.9M |
| Compression method | Spring vertical pressing |
| Product Structure | Vertical compression |

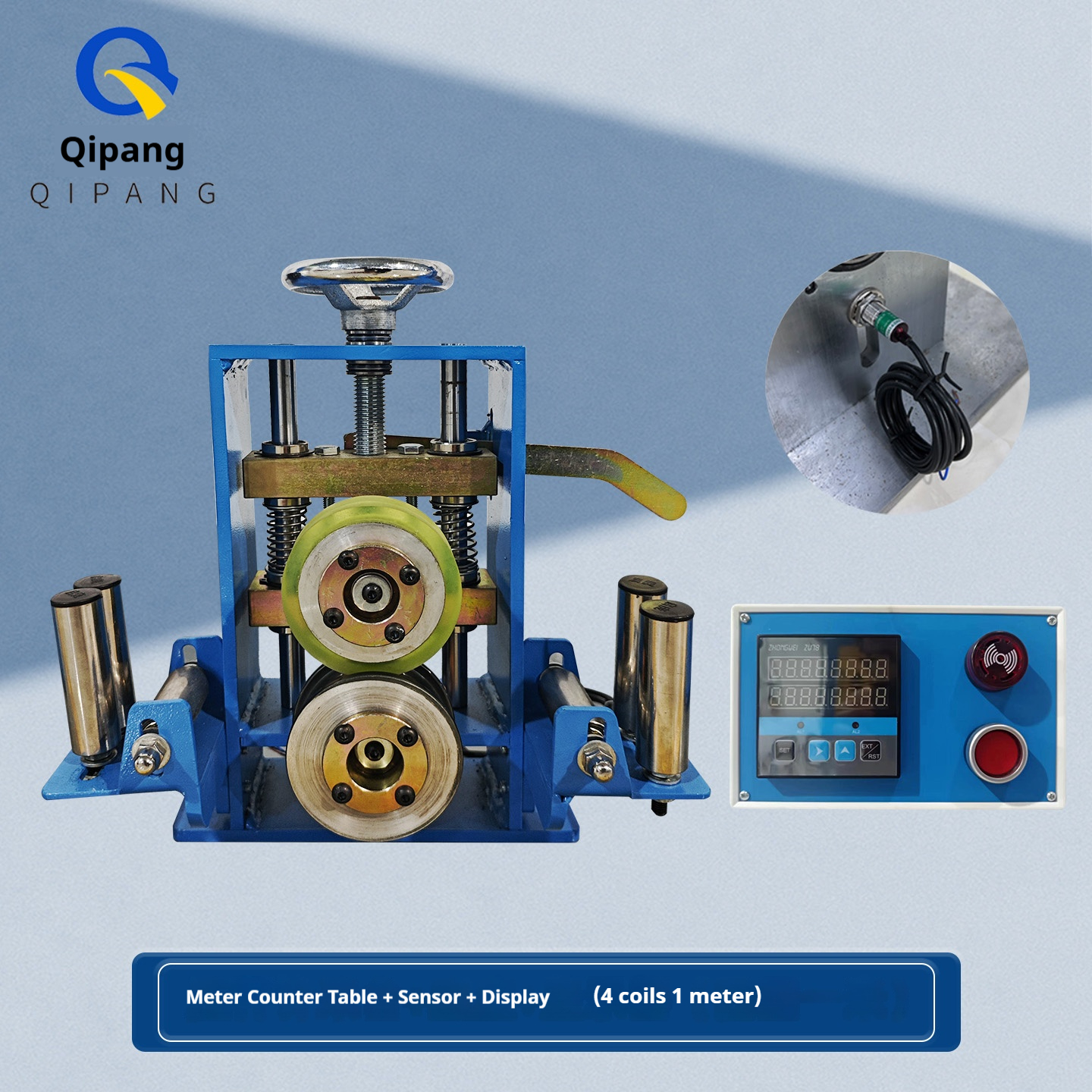

| Counting Method | Sensor(adjustable meter coefficient) or Optional encoder |
| OUTPUT | RS485(Optional) |
| Device Color | 5015 Blue (other customizable) |
| working voltage | 220V AC |
| Equipment weight | 13kg meter head +25kg bracket |
| Equipment dimensions | L480mm* W280mm* H250mm meter counter table+L370mm*W370mm*H680mm bracket |
| Optional accessories | Electronic display meter/bracket |
Cable Meter Counter Advantages:
At the heart of this Wire Length Measurement is its high-accuracy counting mechanism, calibrated to a 2-to-1 ratio—meaning every two full rotations of the measuring wheel register as exactly one meter. This makes it perfect for use on winding machines, where it can be mounted to the guide roller or a dedicated measuring wheel.
The intuitive digital display provides real-time, large-digit readings, so you can monitor the length at a glance, even from a distance. Whether you’re measuring delicate textiles, durable steel cables, or flexible plastic tubing, this counter offers the versatility you need. Its rugged build ensures long-lasting performance, even in busy production settings.
Cable Meter Counter Measuring Principle:

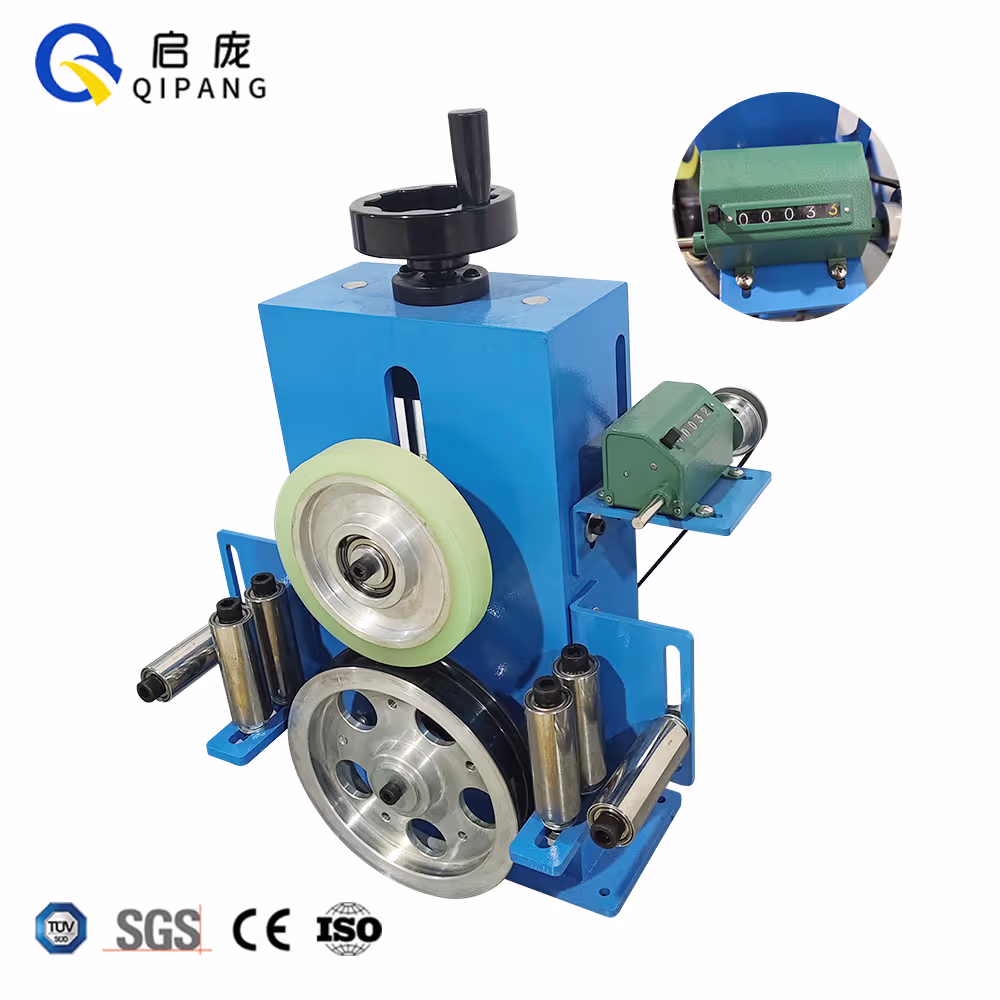

The Digital Electronic Counter Meter for Winding Machine uses a rubber wheel count and porcelain spraying wheel drive mechanism to count the number of meters during the winding process. The meter wheel has a diameter of 79.48mm, and the synchronous wheel parameters are not applicable. The tolerance scope is 1.5-2 ‰, and the measuring speed is up to 200m/min. The center height can be customized, and the measurement method can be either encoder or induction.
Cable Meter Counter FAQs:
1. What is the measuring range of the Digital Electronic Counter Meter for the Winding Machine?
Ans: The measuring range of the meter can be customized from 1-25mm.
2. How fast can the meter count the number of meters?
Ans: The meter can count up to 200m/min.
3. Does the meter come with a display for meter readings?
Ans: The meter has an electronic digital display for an accurate reading.
4. What is the weight of the Digital Electronic Counter Meter for the Winding Machine?
Ans: The meter table weighs 13kg.
5. Can the measurement method of the meter be customized?
Ans: The meter can be customized to accommodate the encoder or induction measuring method.
