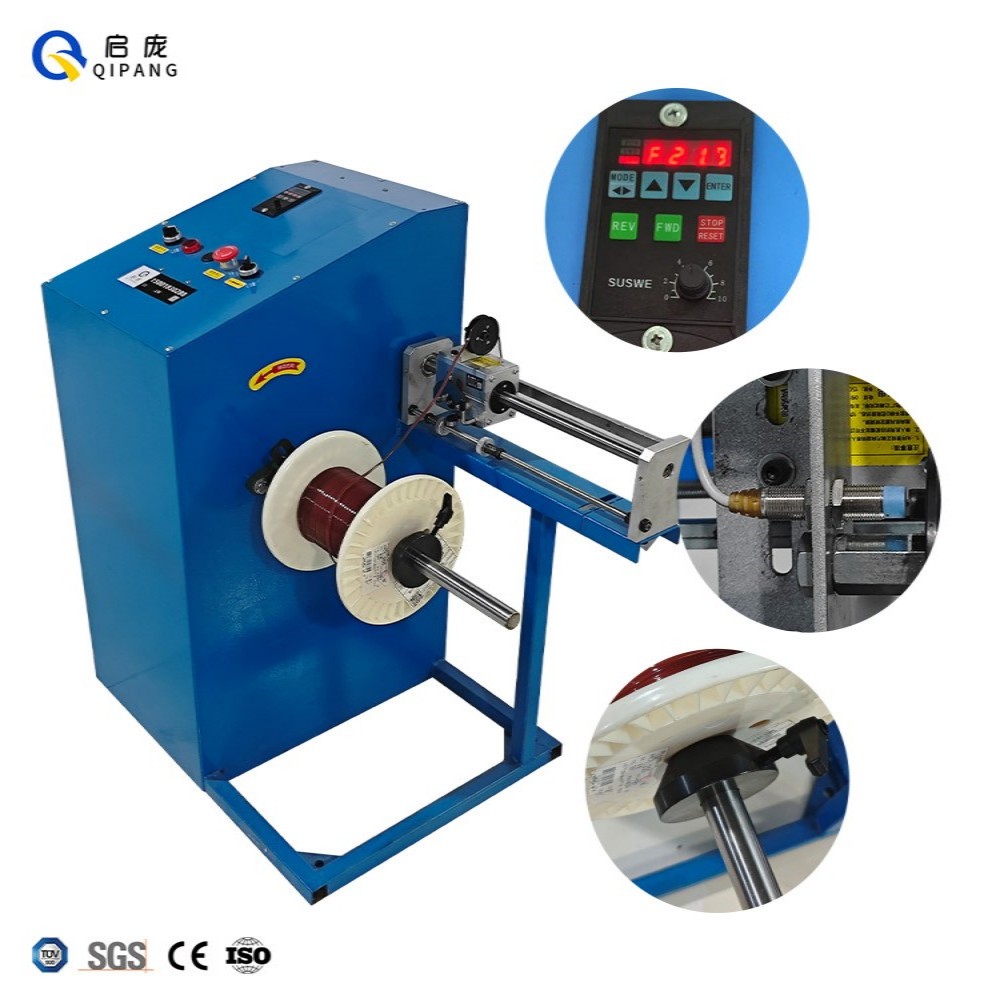

The QP400 Vertical Winding Machine is designed to wind various inner hole bobbins easily. The machine is constructed with square steel, making it durable and long-lasting. The power distribution cabinet is included, which consists of a power supply and frequency converter. Customizing other rates is possible with an adjustable speed of approximately 280RPM. The machine has four fixed expansion screw eyes at the bottom and an anti-slip device at the top that can bear up to 30 kg. The precision rolling ring drives guarantee the accuracy of the winding process, making it the perfect addition to any production line.
| Parameter | Value |
|---|---|
| reel size | OD:100-400mm(3.92"-15.75")inner hole:25mm(0.98") height:89-300mm(3.52"-11.81") |
| motor power | 0.75kw |
| max load | 30kg |
| machine shaft diameter | 20mm or 25mm |
| Adjustable speed | 280 RPM (customizable speed) |
| Fixed expansion screw eyes | 4 in the bottom |

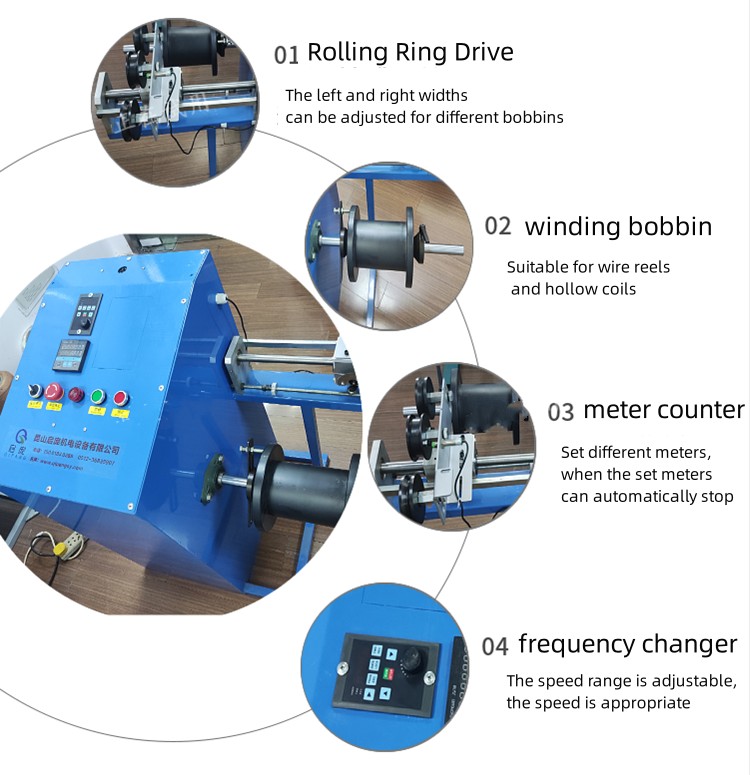

| traverse method | GP20 rolling ring drive,effective stroke: 450mm |
| Power | 220V single phase 50hz (customized power available) |
| Selectable Configuration | |

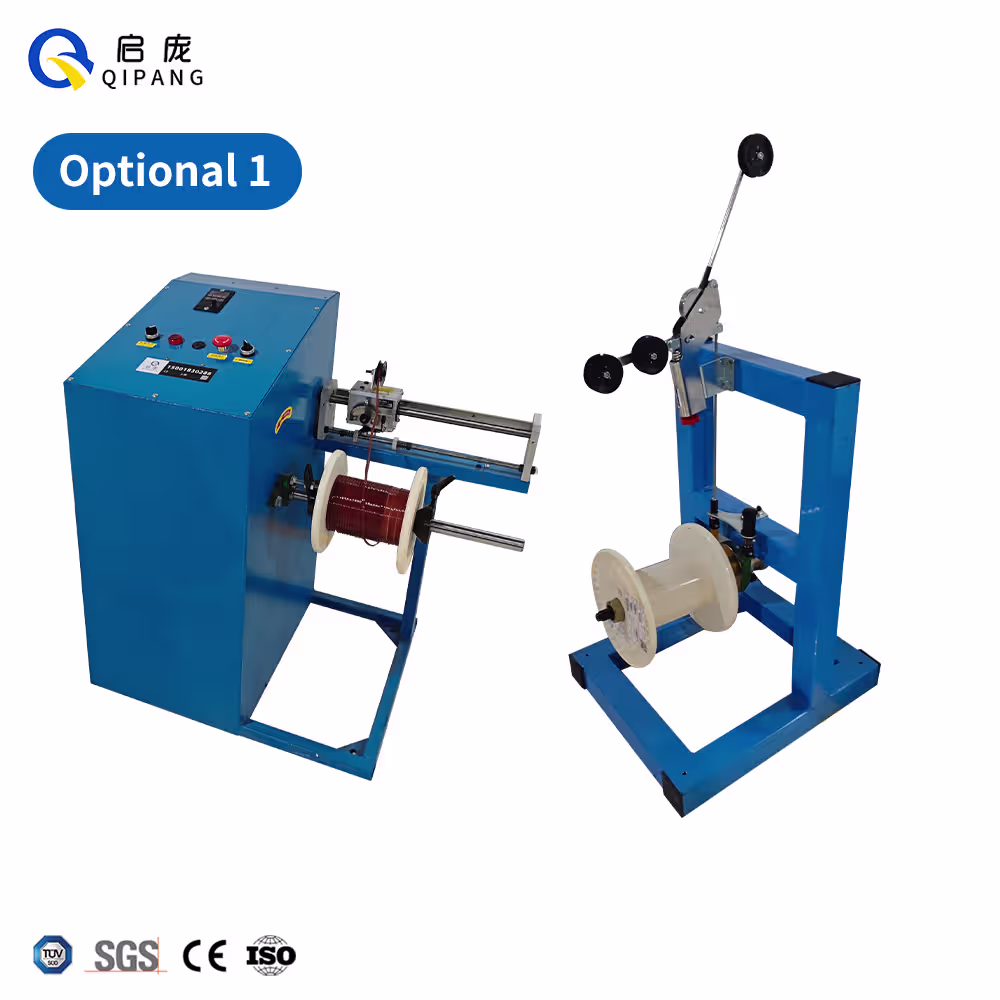

| Option1 | Meter counter: Set the number of meters to stop and alarm |
| Option2 | Magnetic powder tension device: To match the production line for constant speed and preventing wire strain |
Applications:
The 400 Vertical Winding Machine can be used in various industries, such as the electrical, textile, and automotive industries. It is ideal for winding different inner-hole bobbins, making it the perfect addition to any production line.
FAQs:
1. What is the weight capacity of the anti-slip device at the top of the machine?
The anti-slip device can bear up to 30 kg.
2. What is the adjustable speed of the machine?
The adjustable speed is approximately 120N turns per minute; other rates can be customized.
3. What kind of industries can use this machine?
The 400 Vertical Winding Machine can be used in various electrical, textile, and automotive industries.
4. Does the machine come with a power distribution cabinet?
Yes, the machine has a power distribution cabinet with a power supply and frequency converter.
5. Are there any additional features I can add to the machine?
Yes, you can add a meter counter to set the number of meters to stop and alarm and a magnetic powder tension device to match the production line, ensuring constant speed and preventing wire strain.
