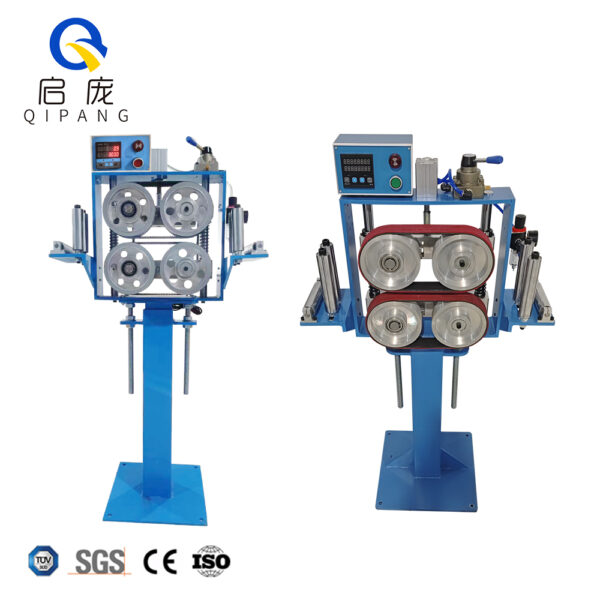

Mechanical Counter Meter For Winding Machine

Features:

  1. High-precision meter-counting steel wheel drive.
  2. Wide measuring range of 1-80mm with a 1‰ tolerance scope.
  3. Fast measuring speed of 200m/min.
  4. Gravity compression ensures accurate and consistent results.
  5. Mechanical counter display for easy tracking and record-keeping.
  6. Customizable center height according to user preferences.
  7. Simple front and rear roller adjustment guide wire in and out.

The Mechanical Counter Meter For Winding Machine is a precise measuring device used to count and measure the length of wire or cable wound in a machine. It is equipped with a meter wheel of 159.15mm diameter and a gravity compression system that delivers accurate and consistent results for a range of 1-80mm. The device also features a mechanical counter display for easy record-keeping and tracking.

ParametersValues
Meter counting methodMeter-counting steel wheel drive
Meter wheel parameters159.15mm diameter
Synchronous wheel parametersWithout
Meter range1-80mm
Tolerance scope1‰
Measuring speed200m/min
Compression methodGravity compression
Display methodMechanical counter
Center heightCan provide parameter customization(Default one meter)
Measurement methodMechanical counter
Incoming directionFront and rear roller adjustment guide wire in and out
Overall appearance ruler500*360*1200mm
Weight66kg

Mechanical Counter Meter For Winding Machine

Applications:

The Mechanical Counter Meter For Winding Machines is primarily used in cable and wire manufacturing industries to facilitate accurate measuring of the length of wire or cable wound in a machine. It is also ideal for use in textile machinery, paper printing machinery, and other industries where precise length measurement is critical.

Measuring Principle:

The Mechanical Counter Meter For Winding Machine uses a meter-counting steel wheel drive and gravity compression method to measure the length of wire or cable. The meter wheel turns as the wire or cable passes through the device, causing the mechanical counter display to increment accordingly. Gravity compression ensures the wheel is in contact with the wire or cable, delivering precise and consistent measurements.

5 FAQs about Mechanical Counter Meter For Winding Machines:

1. Can we customize the center height according to our preference?

Answer: Yes, the center height is customizable, and we can customize the parameter according to your requirements.

2. Can I use this device to measure different types of wire and cable?

Answer: Yes, the Mechanical Counter Meter For Winding Machine is compatible with a range of wires and cables with 1-80mm diameters.

3. Can I use this device to measure the length of wire or cable in different units?

Answer: The device measures the length of wire or cable in meters by default. However, we can customize the counter to display the measurement in different units upon request.

4. Does this device have a backup battery in case of power outages?

Answer: No, the device is entirely mechanical and does not require power or a backup battery.

5. How often should I recalibrate the device?

Answer: Recalibration is not necessary for mechanical counters as they are inherently precise and accurate. However, periodic inspection and cleaning of the device may be required to maintain its accuracy.
