Why Choose Our Plum Blossom Barrel Coiling Machine

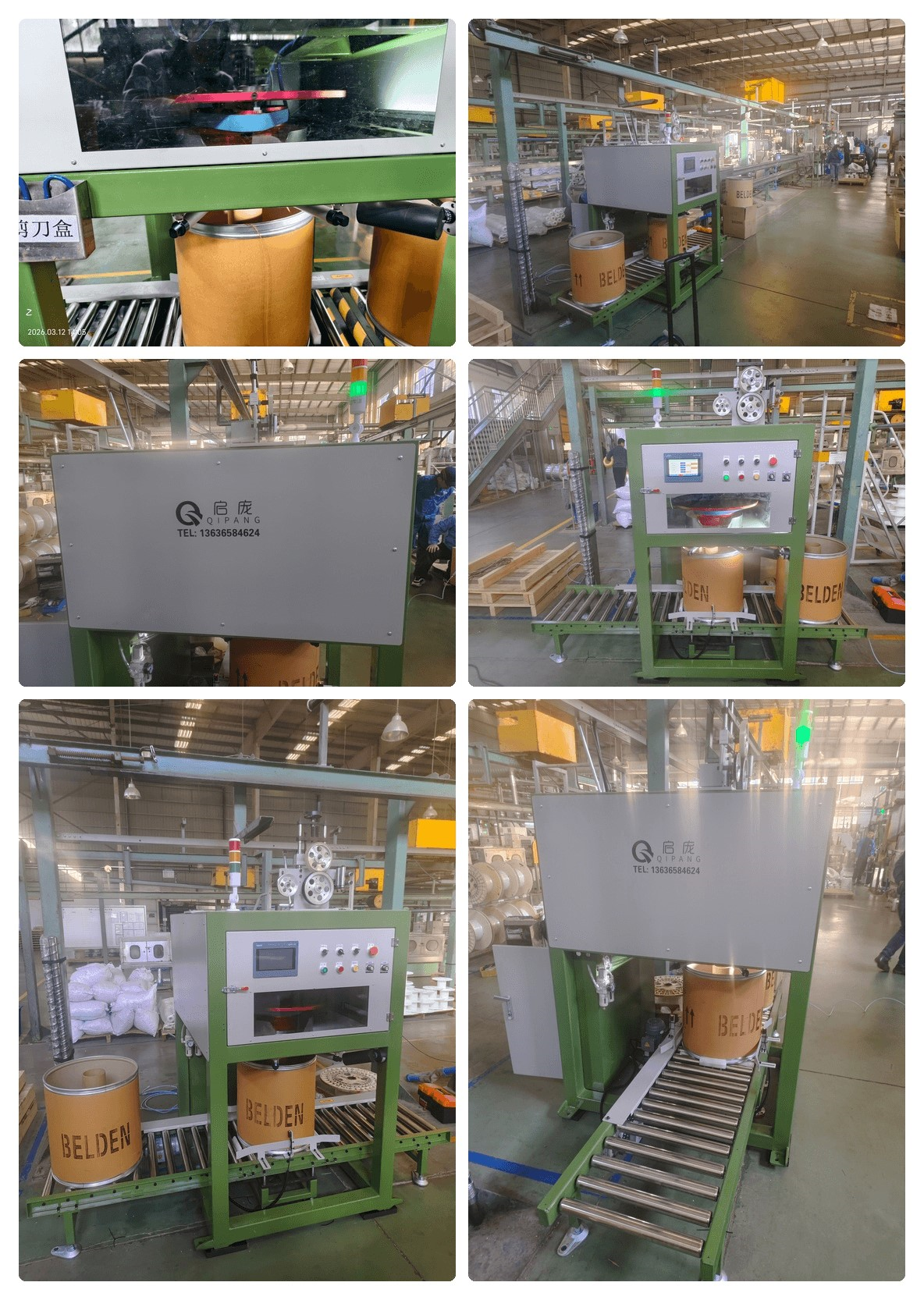

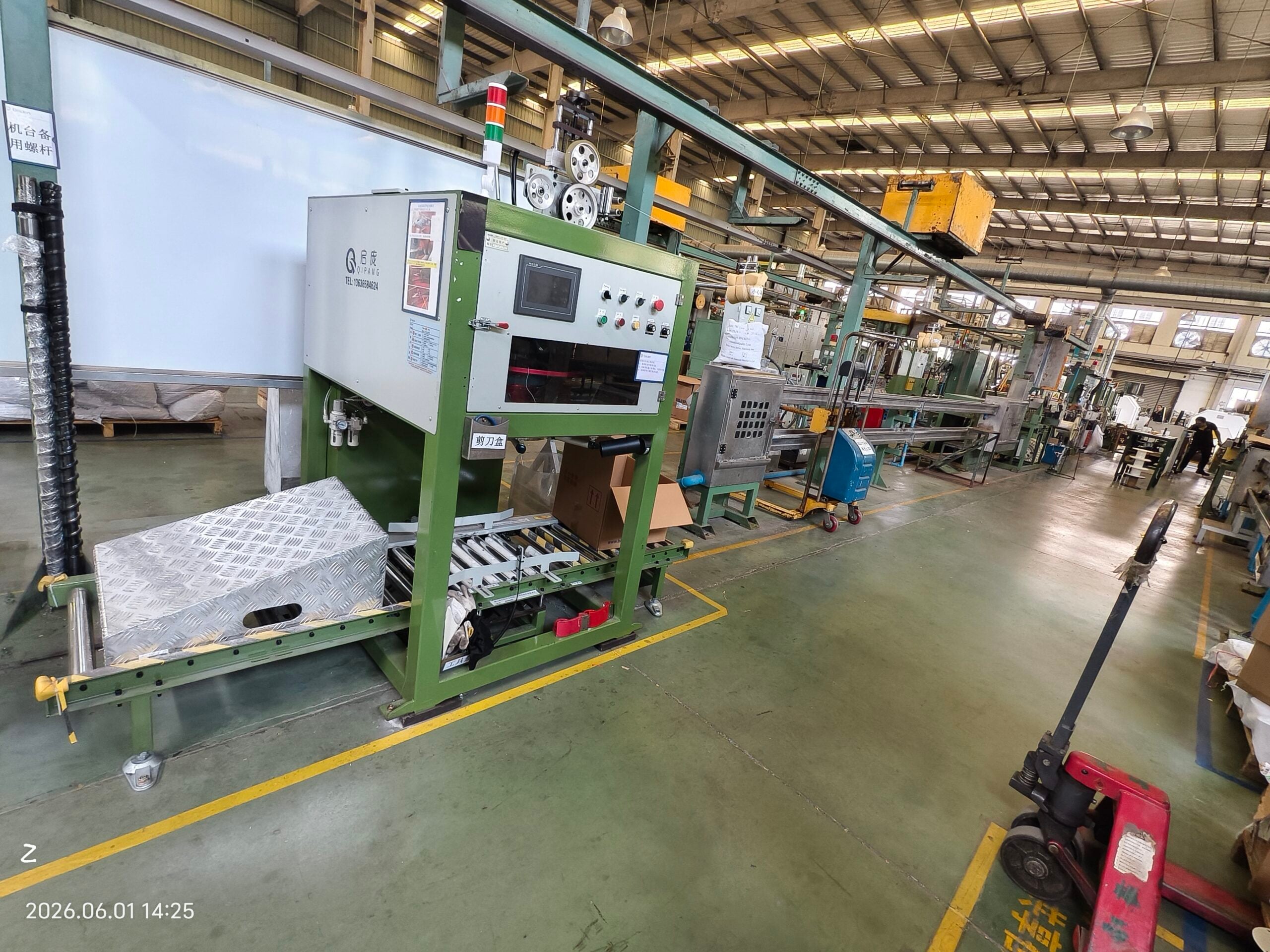

In the cable manufacturing and wire processing industry, the efficiency and neatness of the cable winding and bucketing process directly impact subsequent packaging, warehousing, and the overall smooth operation of the production line. Recently, we successfully delivered and commissioned a high-performance Cable plum blossom barrel coiling machine for BELDEN company in suzhou. Relying on our superior cable vibrating and winding technology, we completely resolved the customer’s pain points in the cable collecting process, earning high recognition from the client.

Core Pain Points And Our Tailored Solution For Cable Winding

As a well-known cable manufacturer in the industry, BELDEN  has extremely high requirements for equipment stability and finished product quality. Previously, they faced challenges in the cable spooling stage, such as messy winding and frequent manual intervention. To address these needs, we customized a plum blossom barrel coiling winding machine solution for them.

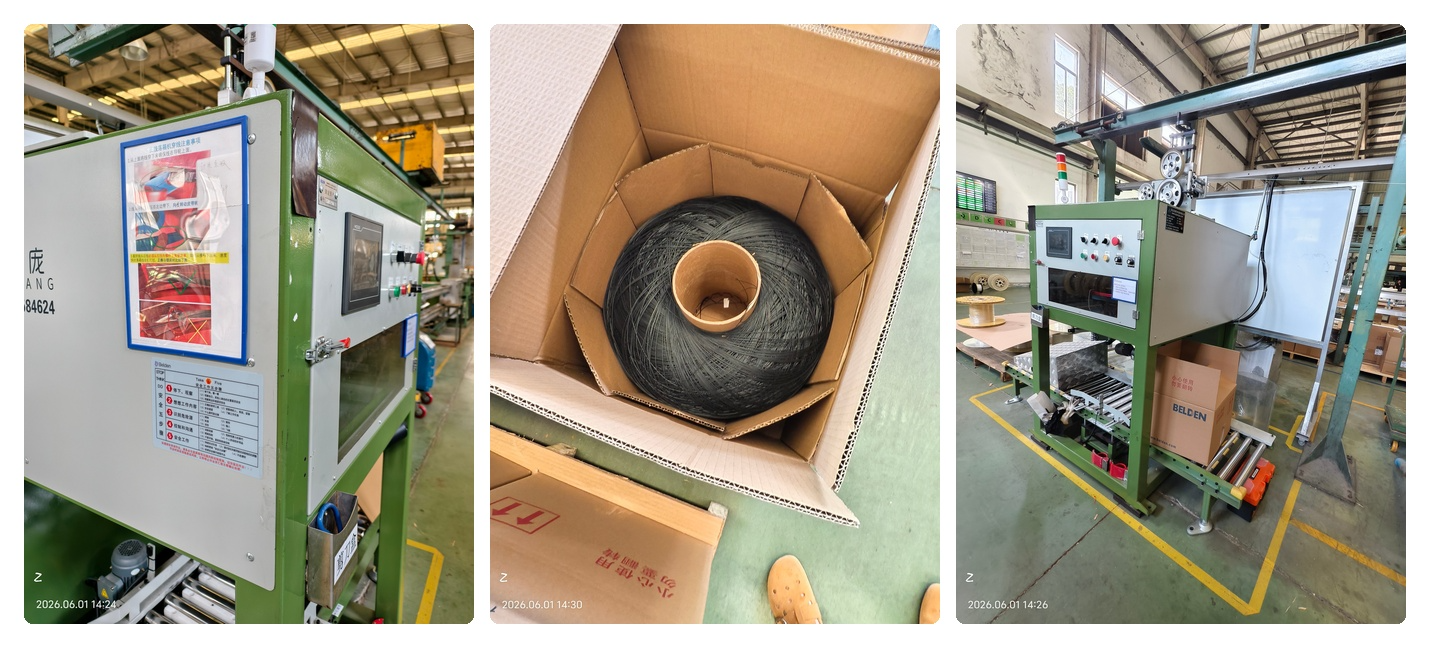

The core advantage of this equipment lies in its precision cable vibrating mechanism. Through high-frequency and uniform vibration, cables can be automatically and neatly coiled into the buckets. This not only significantly improves the winding density and aesthetics but also effectively prevents cable tangling or damage. Since the equipment was put into operation, BELDEN’s production line efficiency has been significantly improved, and labor costs have been drastically reduced. The customer is highly satisfied with the actual performance of the machine.

Why Choose Our Cable Plum Drop Winding Machine?

This deep cooperation with BELDEN Kunshan once again proves our R&D and delivery capabilities in the field of non-standard automated equipment. Our Cable Winding and Bucketing Machine is not only suitable for the collecting and bucketing of various cables and optical fibers but can also be customized according to the customer’s specific bucket diameter, wire diameter, and capacity requirements.

More Uniform Vibrating Winding:

Our independently developed vibration control system ensures tight and neat cable arrangement, completely eliminating messy winding.

Stable Operation & Low Noise:

Premium mechanical structure and shock-absorption design ensure smooth and quiet operation even at high speeds.

Premium Alternative to Imported Equipment:

Performance comparable to or even surpassing some imported machines, with shorter lead times and more comprehensive local after-sales support.

Proven Strength: Invited to Optimize Other Cable Equipment

Based on the successful delivery and superior performance of this plum blossom barrel coiling winding machine , BELDEN in Kunshan has placed its full trust in our technical capabilities. Recently, the client invited our technical team to their workshop to propose optimization solutions for other equipment.

Belden’s Kunshan factory production line previously deployed two cable winding machines from Japan. These machines performed adequately when handling conventional cables, but problems arose when dealing with high-difficulty, fine cables.

Challenge 1: Insufficient Precision in Unwinding Fine Cables

Fine cables, especially highly flexible data cables or special cables, require extremely high precision in unwinding and tension control. The Japanese equipment, operating at high speeds, could not guarantee that the fine cables would fall accurately and without damage into the reel, resulting in chaotic cable arrangement and uneven tension, directly impacting subsequent packaging and customer experience. This does not meet Belden’s definition of “perfect delivery.”

Challenge 2: Unsmooth Unwinding at High Speeds

To improve efficiency, the production line requires higher speeds. However, at high speeds, the existing unwinding machine experienced tension fluctuations and knotting issues. This is not only a bottleneck in efficiency, but also potentially causes physical damage to the cable itself.

Faced with these two thorny issues, Belden needed an expert capable of providing customized, high-precision, and highly stable solutions. After extensive investigation and evaluation, they chose Shanghai Qi Pang Industrial Co.,LTD.

Solution: Qipang  Solves Belden’s Cable Production Challenges

Shanghai Qi Pang Industrial Co.,LTD., a Chinese company specializing in the R&D and manufacturing of cable equipment, leveraged its deep technological expertise and rapid response capabilities to tailor an innovative solution for Belden.

Addressing the Fine Wire Dropping Challenge: Qipang Technology’s R&D team conducted in-depth analysis of the physical characteristics and process requirements of Belden’s fine wires, comprehensively optimizing the tension control system, conductor path, and take-up reel drive of the wire dropper. The new equipment can control the tension of the fine wires with extremely high precision, ensuring that they drop perfectly and neatly into the reel even at high speeds, completely resolving the “tangle” problem left by previous Japanese equipment.

Addressing the High-Speed ​​Wire Dropping Bottleneck: For the high-speed wire dropping problem, Qipang Technology designed a dynamic tension compensation system. This system can monitor tension changes in real time during the wire dropping process and make rapid adjustments, ensuring that the cable maintains a constant and smooth tension at high speeds, eliminating the risk of knots and damage, and achieving a perfect balance between production efficiency and product quality.

From successful delivery to being invited to guide the optimization of imported equipment, the Belden Kunshan  case is the driving force for our continuous progress. In the future, we will continue to focus on the cable and wire winding and unwinding equipment field, using more advanced Cable Vibrating Bucket Machines and Cable Winding Technology to help more manufacturing enterprises achieve cost reduction, efficiency improvement, and industrial upgrading.

If your enterprise is also facing challenges in cable winding and unwinding, or if you are looking for a high cost-effective alternative to imported cable winding equipment, please feel free to contact us to get an exclusive automation solution!
